½ºÇªÅ° Ç÷¯½º

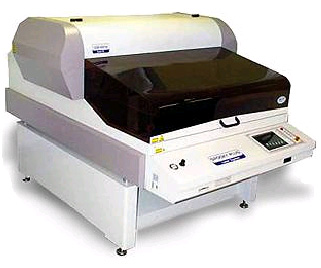

½ºÇªÅ° Ç÷¯½º ·¹ÀÌÀú Ä¿ÆÃ, ¿¡Äª ½Ã½ºÅÛ
  • ASSIST GAS FOR CUTTING WITH GAUGE AND MICRO FILTER VA
  • CUTTING HEAD WITH 2.5" FOCAL UNIT
  • COOLING SYSTEM (CHILLER)
  • BEAM EXPANDER
  • S/W (ICARO)
  • X,Y axis working speed: 1-1000 mm/ sec
  • X,Y maximum traverse and contour speed: 1000 mm/ sec
  • X,Y resolution: 0.1 mm

  • Working area: 800 x 1100 mm
  • dimensions 1900*2200*1600mm
  • Z axis run 100mm
  • weight 750kg
  • speed 1000mm/sec
  • axis resolution 0.01mm
  • repeatibility 0.05mm
  • precision 0.1mm
  • interface RS 232/C
  • power Singlre phase 220V
  • input kw
  • compressor air 4 bar/min ÀÌ»ó
  • operating temperature 10-35
  • operating humidity 75% ÀÌ»ó
  • laser source 50W / 100W/250W
  • (cooling system) ( WATER)
  • focal units 2.5"
  • laser guranteed 10000 hours
  • Distance between beam and working surface: 100 mm max
  • Z axis travel and height adjustment: 100 mm

  • Sealed-source CO2 laser power: 50W, 100W, 250 W
  • Input: 220V, 50 Hz
  • Compresses air: 2 L/ min

    Option:
  • Raster mode, CCD camera, Dual cutting head, 3D contouring SW
  • Drilling spindle, Suction head, Exhaust filter, Red diode aming beam

    »ç¿ë ºÐ¾ß:
  • FPD, PDP, ¸ñÀç, ½ºÆ¿ Àý´Ü,
  • ·Î°í, Çöó½ºÆ½, Å×ÇÁ·Ð, °¡Á×, ¼¶À¯, õ,½ºÆùÁö ,¸ðµ¨ ¸¶Å·, µîµî,



















































                                                                         JS Engineering Co.

                                                                         Tel 031-479-4211/ 2

                                                                         Fax 031-479-4213

                                                                         Email JSi@JSiTS.com
